SUBMARINE PIPELINES FOR THE KOUDIET CCC (ALGERIA)

[bloque_categoria_proyecto]
Scope:
Construction Project
Location:
KOUDIET (ALGERIA)

The Project defines the submarine intake pipelines for the cooling circuit of the Koudiet CCC in Algeria.
The characteristics of the intake pipeline are:

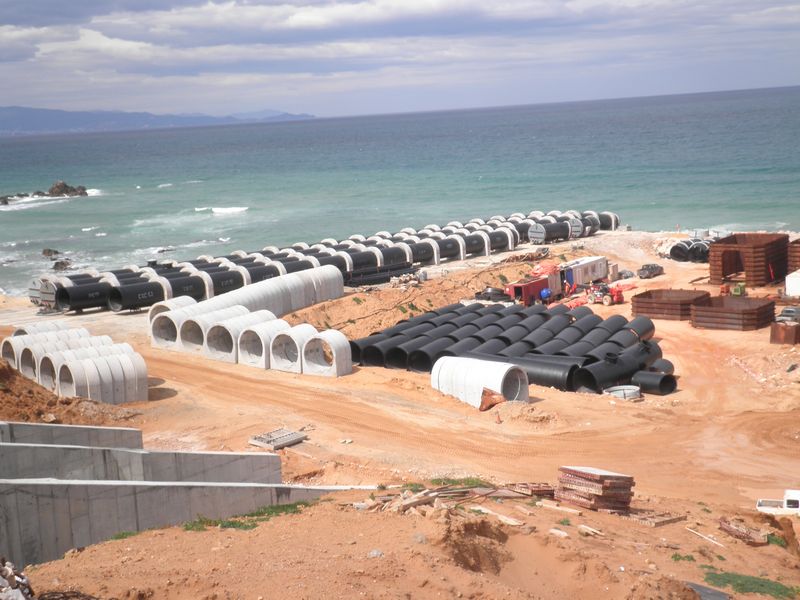

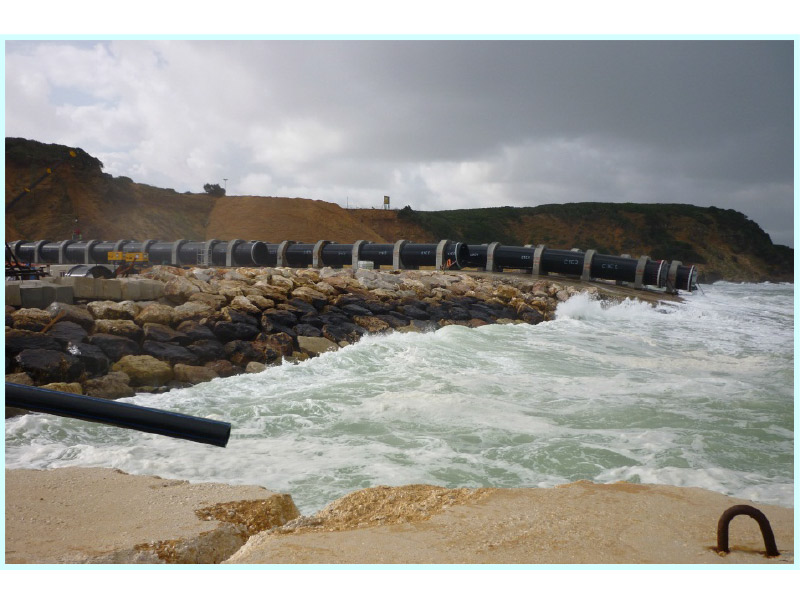

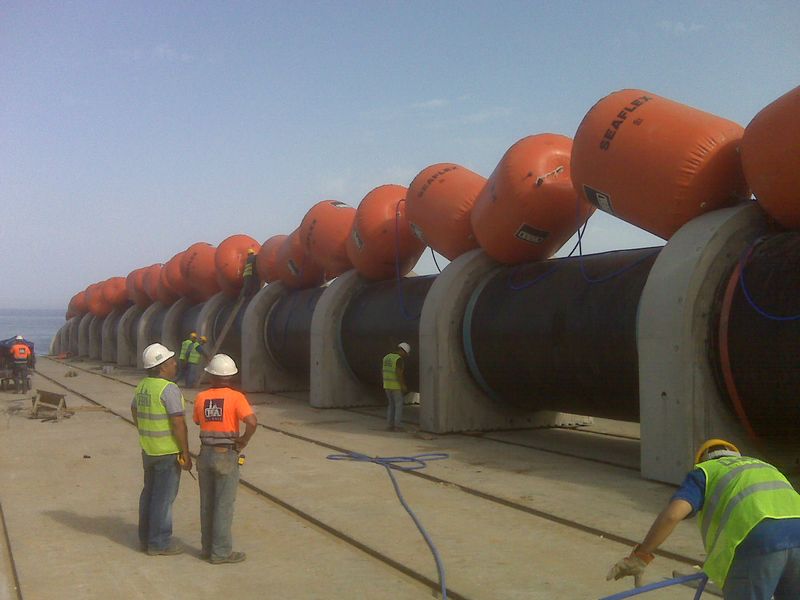

• Design: 4 PE-100 pipelines.
• Internal diameter: 2,400 mm.
• Length: varies between 392 and 437 m.
• Average intake depth: 15 m.
• Cooling system flow rate: 27.77 m³/s, with a design flow rate of 41.67 m³/s adopted on the safety side.

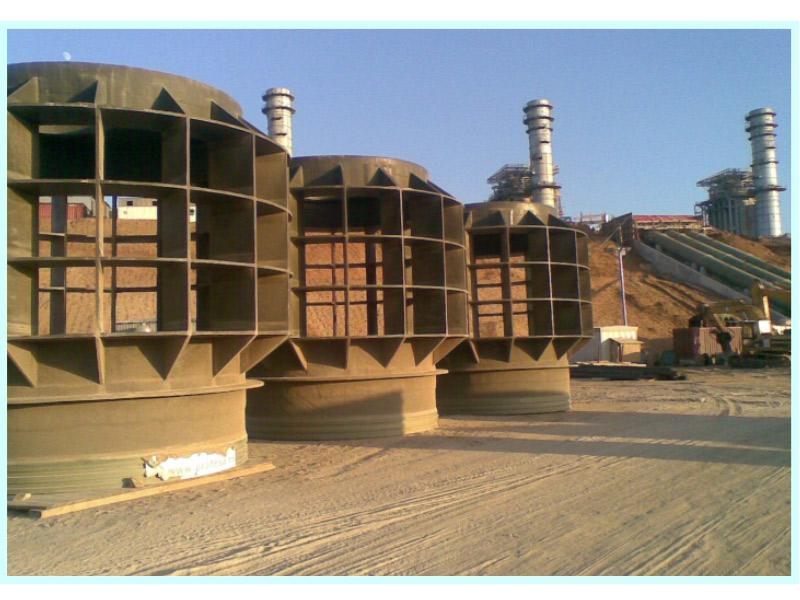

Additionally, the design of the intake structures is carried out in GRP.
The Project also calculates the protection of the marine platform where the pump chamber is located and includes the definition of the access roads and drainage of said platform.
