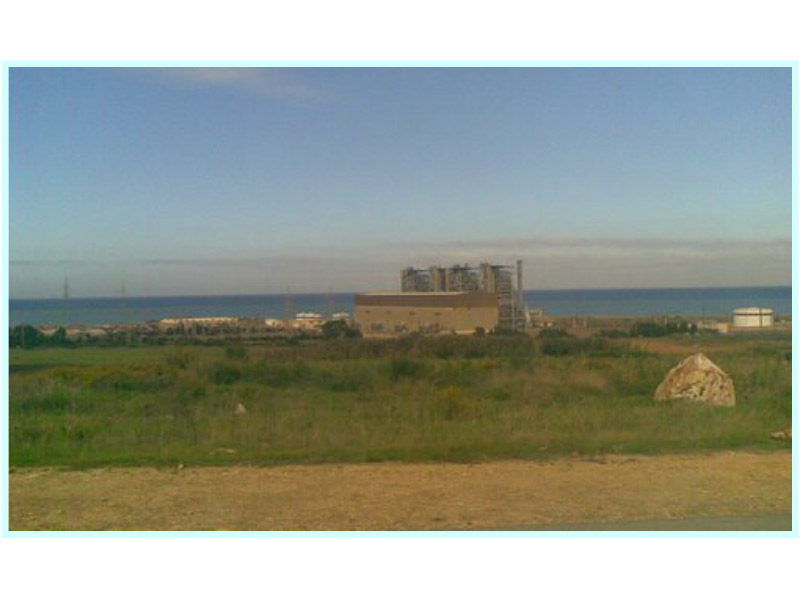

COOLING CIRCUIT FOR THE CCC AT RAS DJINET (ALGERIA)

[bloque_categoria_proyecto]
Scope:
Basic Tender Design
Location:
DOUAR MENDIL (ALGERIA)

The Basic Design of the cooling system for the CCC at Ras Djinet is carried out. A preliminary design of the pump chamber, intake pipelines, and discharge channel is performed.

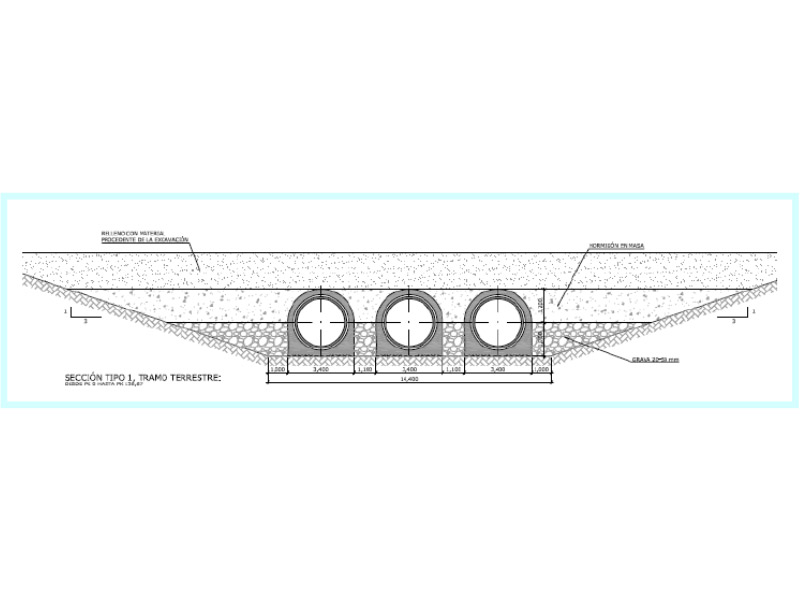

The characteristics of the submarine outfall are:
• Material: PE100.
• Internal diameter: 3 pipes of 2,400 mm (1 spare)
• Average polyethylene length: 1,496 m
• Flow rate: 10 m³/s
• Discharge via discharge channel

The first step was to estimate, based on available studies, the intake depth required to capture water at a temperature that ensures proper cooling of the system. Once the depth was defined, the cooling system is dimensioned.
