SUBSEA PIPELINES FOR THE CAP D’JINET DESALINATION PLANT (ALGERIA)

[bloque_categoria_proyecto]
Scope:
Construction Project
Location:
CAP D’JINET (ALGERIA)

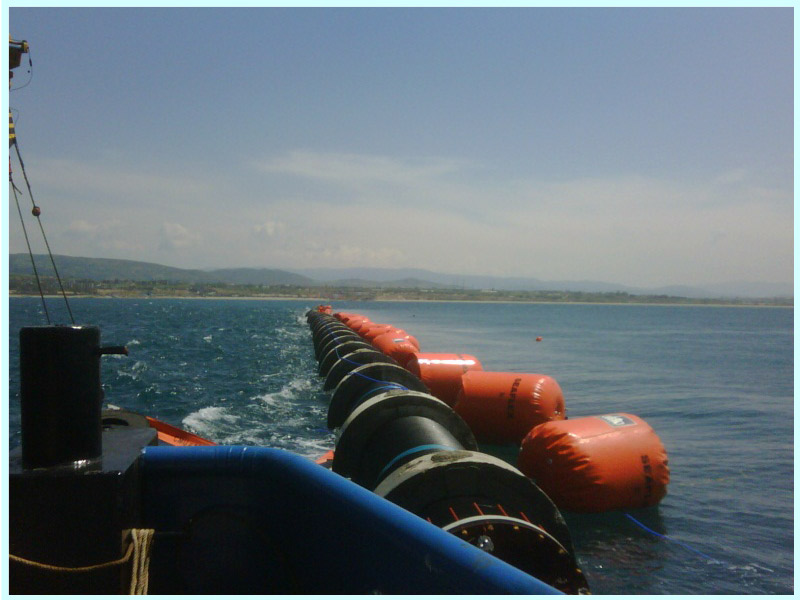

Following the preliminary environmental and marine climate studies carried out by the UTE, the sizing and design of the desalination plant’s subsea pipelines are undertaken.

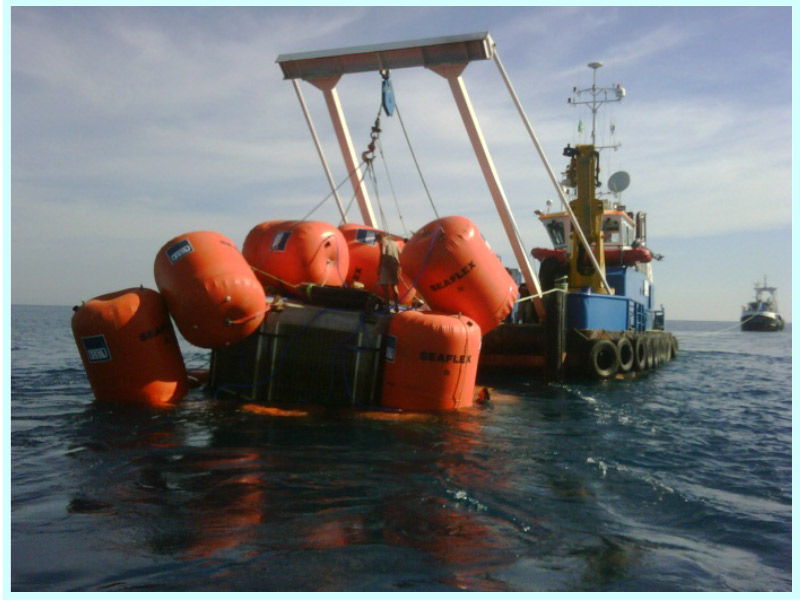

In addition, the diffuser section and the intake tower are designed to ensure optimal operation.
The pipeline characteristics are:
• Material: PE100.

• Internal diameter:
• Intake: 1,800 mm
• Discharge: 1,200 mm

• Polyethylene length:
• Intake: 1,779 m
• Discharge: 1,170 m

• Flow rate:
• Intake: 2.64 m3/s
• Discharge: 1.42 m3/s
