SUBMARINE PIPELINES FOR THE HONAINE DESALINATION PLANT, ALGERIA. VALIDATION REPORT FOR THE PIPELINES PROPOSED FOR THE PROJECT

[bloque_categoria_proyecto]
Scope:
Technical report

Technical report for the validation of the pipelines proposed by PPA&KRAH, divided into sections to optimize the pipeline according to structural requirements.

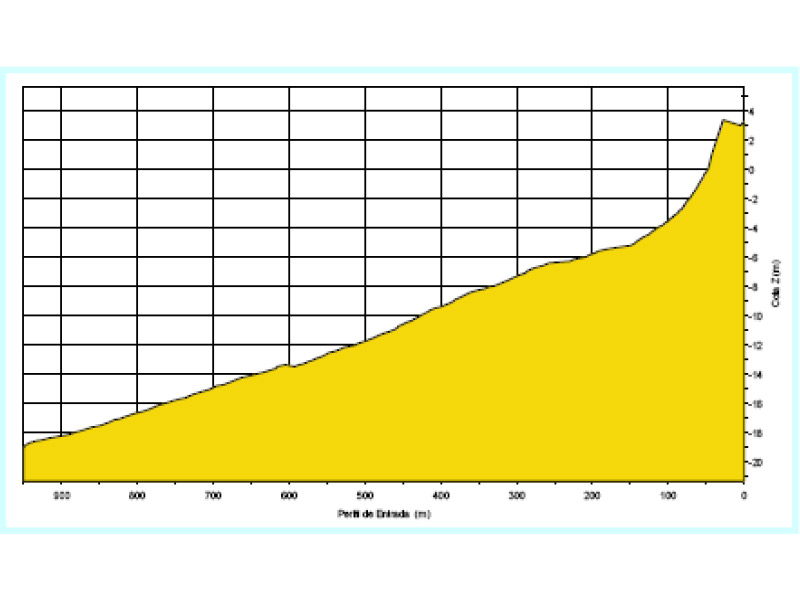

A beach profile study is also carried out to analyze the evolution of the profile upon the arrival of the design storm, assessing the possibility of removing the protective concrete and the maximum earth loads.

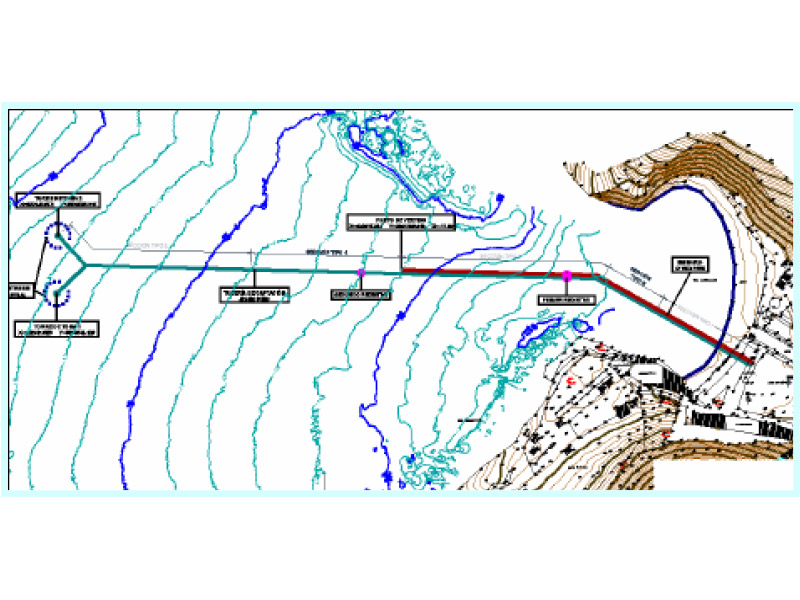

The characteristics of the pipelines are:
•PE80 seawater intake pipeline.
– Internal diameter: 2,400 mm
– Length: 900 m
– Depth: 14 m
•PE80 brine discharge pipeline
– Internal diameter: 1,500 mm
– Length: 460 m
– Depth: 11 m
