Project

The main characteristics are:
• Material: PE-100
• Intake pipeline: The intake pipeline will have an outside diameter of 1,600 mm, SDR-26. The pipeline length is 1,000 m, with an intake depth of 10 m. The flow rate is 3.07 m3/s
• Outfall pipeline: The outfall pipeline will have an outside diameter of 1,200 mm, with an SDR of 26 (wall thickness 46.15 mm), a length of 600 m, and an outfall depth of 8 m. This depth was selected following the dilution calculations carried out. The flow rate is 1.91 m3/s

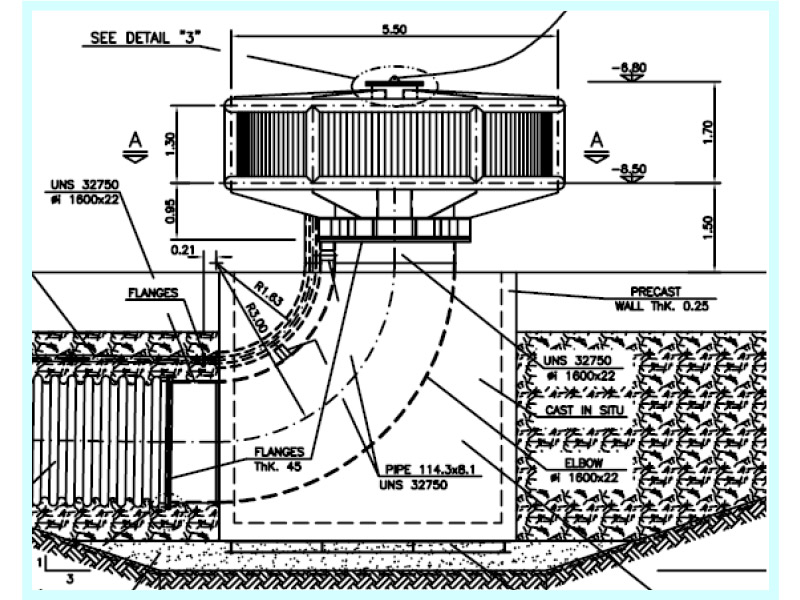

• In addition, the diffuser section, the intake, the protection system using trawl guards and marking, and the required ballast are designed.
