DESIGN OF THE SUMP AND DISCHARGE RAMP FOR THE MONTOIR DE BRETAGNE OUTFALL SYSTEM. CCGT 435 MW, FRANCE

[bloque_categoria_proyecto]
Scope:
Detailed Design
Location:
MONTOIR (FRANCE)

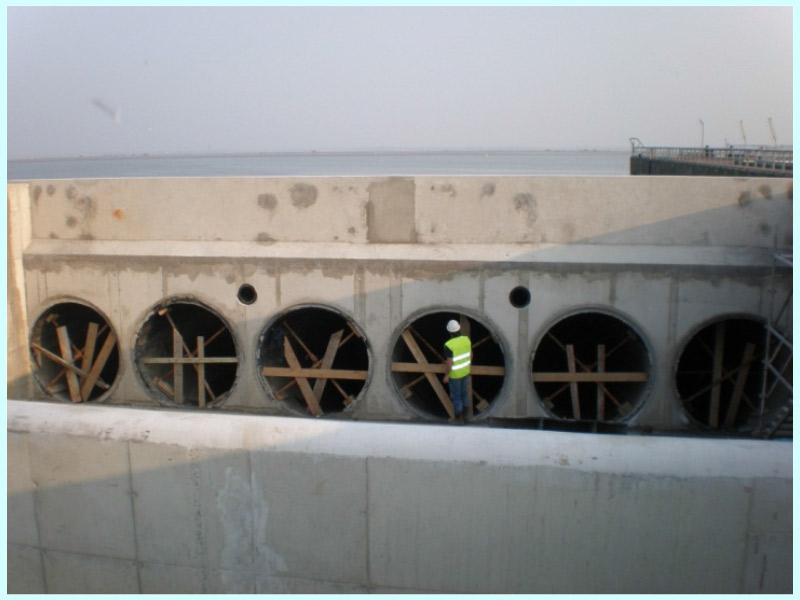

SUMP
Supporting calculations and construction drawings for the discharge system sump:
• Excavation using sheet pile walls. Calculation using RIDO software.
• Pile-supported slab.
• Reinforced concrete sump.
• Modeling with 3D Structural Analysis Software.

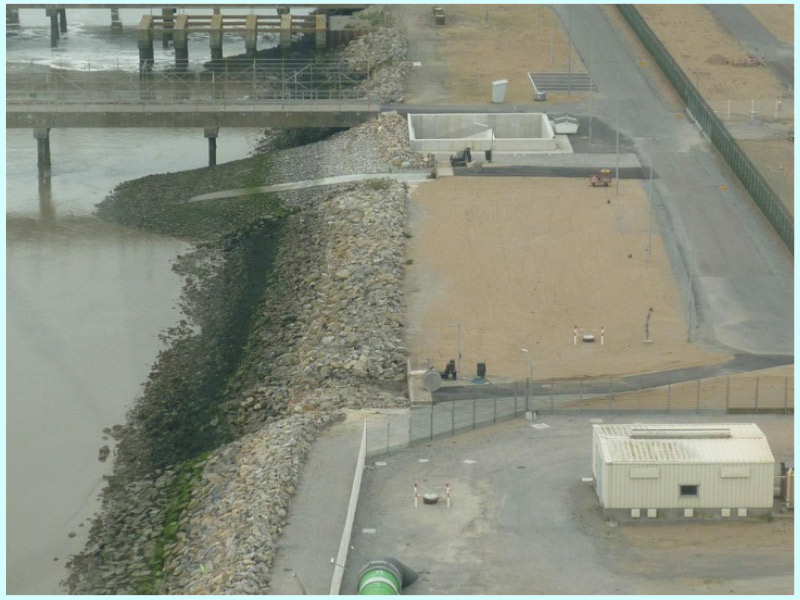

DISCHARGE RAMP
• 6 HDPE pipes, each 21 m long. Structured wall. ID = 2,000 mm.
• Design of special diffuser pieces at the end of the pipes.
• Hydraulic design consultancy. Analysis and validation of the hydraulic models developed, some using ANSYS software.
• Hydraulic calculations.
