SUBMARINE OUTFALL FOR THE SEAWATER DESALINATION PLANT IN THE CITY OF ENSENADA (MEXICO)

A complete tender project for the brine discharge submarine outfall is carried out for the Ensenada State Water and Sanitation Commission. The characteristics of the pipeline are as follows: • PE100 Brine Discharge Pipeline. • Internal diameter: 406 mm. • Length: 900 m. • Depth: 10.6 m

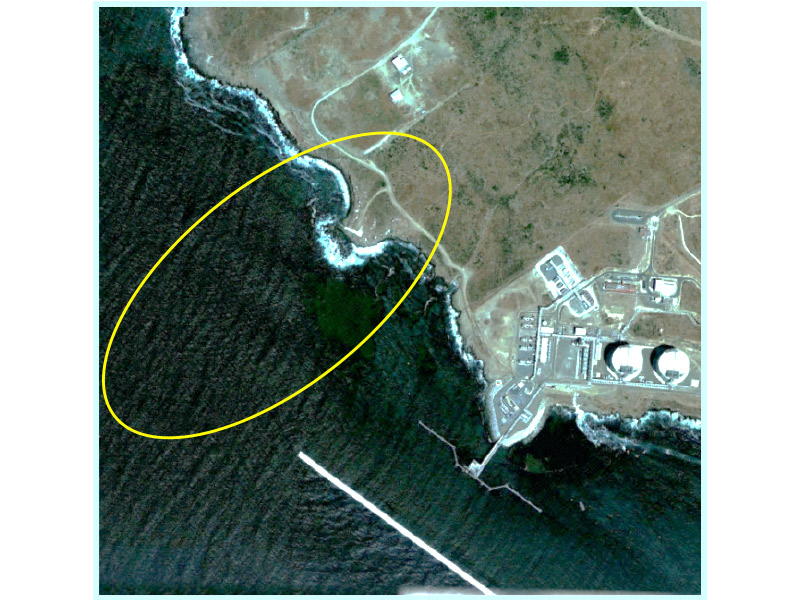

INTAKE AND DISCHARGE PIPELINES FOR THE LA JOVITA CCC, BAJA CALIFORNIA (MEXICO)

Development of 3 alternatives for the intake (2) and discharge (2) of seawater for the cooling circuit of a new CCC. • Qd = 29735 m3/h, for both intake and discharge. • Selection of intake and discharge points. • Hydraulic calculations and preliminary design of structures • ALTERNATIVES: 1. TRENCH. 2. PIPE JACKING, complemented with […]

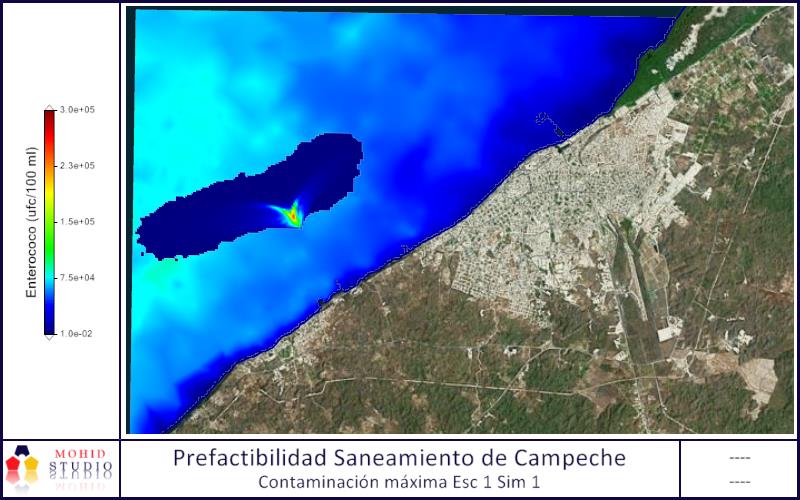

MATHEMATICAL MODEL FOR THE PRE-FEASIBILITY STUDY OF THE SANITATION OF CAMPECHE BAY (MEXICO)

In support of the pre-feasibility study developed, a study of discharge dispersion is carried out using mathematical models (MOHID).Four different discharge cases are studied: • Secondary treatment 2,000 m from the coast • Tertiary treatment 500 m from the coast • Stormwater discharge for a 10-year return period and 3-hour intensity at the coast. • […]
