RELOCATION OF THE SUBMARINE OUTFALL FOR THE MANCOMUNIDAD DEL SURESTE, GRAN CANARIA

[bloque_categoria_proyecto]
Scope:
Modified Project
Location:
GRAN CANARIA, SPAIN

Drafting of the modified project, proposing a change in the pipeline route, which will run along the current pier, reaching the sea through a shaft created in a cell of one of the breakwater caissons.
It consists of:
• LAND section:
• PE 100 pipe
• Length 1,047 m
• Outer diameter 900 mm
• Thickness 27.6 mm
• SDR 33
• Elevation: 4.377 m

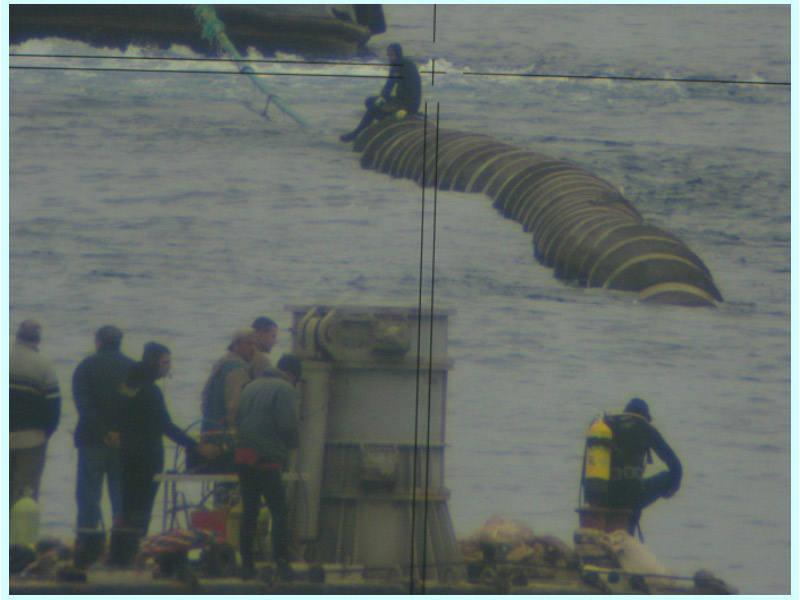

• SUBMARINE section:
• PE 100 pipe
• Outer diameter 900 mm
• Thickness 34.4 mm
• SDR 26
• Length 928 m, including the diffuser section.
• Maximum depth: 26 m
• Flow rate: 0.871 m3/s
