Project

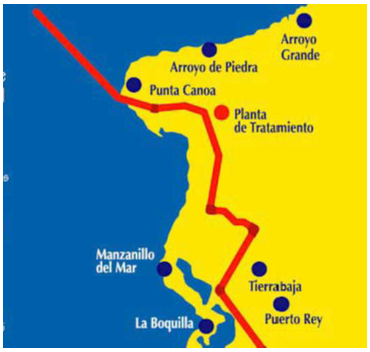

Following the damage sustained by the pipeline during the sinking process, a report was drafted to justify the calculations performed to ensure the proper sinking of the Cartagena de Indias submarine outfall pipelines.
The sinking study was carried out across three distinct sections:
. Section 1: from a depth of 10 m to 16 m.
. Section 2: from a depth of 16 m to 19 m.
. Section 3: from a depth of 19 m to 23 m.

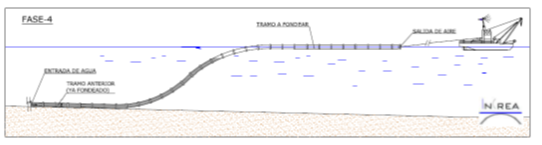

In addition, the proposed sinking process is briefly described.
The pipeline characteristics are:
. Material: PE100.
. Pipeline: Outer diameter 2,000 mm SDR 26
